POPULAR MICROPHONE PLUG AND SOCKET PINOUTS.
X=(cannon x) L=(Latch) R=(rubber compound)
SKIP TO
KENWOOD- MC-10 MICROPHONE.
KENWOOD- MC-30 / 35 MICROPHONE.
KENWOOD- MC-42S MICROPHONE.
KENWOOD- MC-43 MICROPHONE.
KENWOOD- MC-44 MICROPHONE.
KENWOOD- MC-45 MICROPHONE (mk1).
KENWOOD- MC-45 MICROPHONE (mk2).
KENWOOD- MC-46 MICROPHONE.
KENWOOD- MC-47 MICROPHONE.
KENWOOD- MC-48B MICROPHONE.
KENWOOD- MC-50 MICROPHONE. pdf.
KENWOOD- MC-53DM MICROPHONE.
KENWOOD- MC-55 MICROPHONE.
KENWOOD- MC-57 MICROPHONE.
KENWOOD- MC-58 MICROPHONE.
KENWOOD- MC-59 MICROPHONE.
KENWOOD- MC-60 MICROPHONE.
KENWOOD- MC-60A MICROPHONE.
KENWOOD- MC-80 MICROPHONE.
KENWOOD- MC-85 MICROPHONE.
KENWOOD- MC-85 SCHEMATIC pdf.
KENWOOD- MC-90 MICROPHONE.
KENWOOD- SMC-25 SMC-30 SPEAKER/MIC.
KENWOOD- SMC-32 SPEAKER/MIC.
KENWOOD- SMC-33 SPEAKER/MIC.
KENWOOD- SMC-32 SMC-33 SMC-34 SCHEMATIC pdf.
KENWOOD- KMC-9C KMC-30 KMC-32 KMC-35 KMC-36 MICROPHONES.
MJ-88 CONNECTING CABLE.KENWOOD
MICROPHONE COMPATIBILITY LIST pdf.
KENWOOD( Handheld Tranceiver's )-TH-22A/AE TH-42A/AE TH-78A/E TH-F6
TH-F7 TH-F7E THG-71 TH-D7A/E
TH-K2AT TH-K2E TH-K4E TH-K4AT TH-235 UBZ-LJ8BE UBZ-LJ8SLE UBZ-LJ8YE VBZ-LH14
VBZ-LF AR-14 GR-14
( see SMC-32 SMC-33 SMC-34 above for external microphone
and PC interconnection )
KENWOOD( Handheld Tranceiver's )-TR-2500 TR-2600
( see SMC-25/SMC-30 above. )
KENWOOD-T599S-TS120S-120V-700G-700S-130S-130V-490-520S-530S-820S-830S-
TR2300-TR2200-TR2200GX-TR3200-TR7010-TR7200-TR7200G-TR7400A-TR7500-TR7600-TR7625
PIN1 MIC PIN2 PTT PIN3 PTT/EARTH PIN4 SCREEN AND EARTH
7 PIN REMOTE PLUG/SOCKET. KENWOOD-TS120-130-140-180-430-440-450-530-570-680-690-830-870-940-950.
PIN1 SPEAKER OUT PIN2 RELAY COMMON GROUND/EARTH PIN3 PTT FOR FOOT SWITCH PIN4 RELAY CLOSED ON TRANSMIT PIN5 RELAY OPEN ON TRANSMIT PIN6 ALC INPUT PIN7 +12VOLTS ON TRANSMIT ( 10 Ma Max ) PLUG SHELL EARTH.
6 PIN ACC PLUG/SOCKET.
KENWOOD-TS-450-690-570-850-870-950.
PIN1 SIGNAL GROUND/EARTH
PIN2 TRANSMIT DATA
PIN3 RECEIVE DATA
PIN4 CTS ENABLE TX
PIN5 RTS ENABLE RX
PIN6 N/C
SHELL EARTH
13 PIN ACC2 PLUG.
KENWOOD-TS440-450-680-690-570-711-790-811-850-870-940-950
PIN1 N/C
PIN2 N/C
PIN3 RX AUDIO OUT
PIN4 SCREEN FOR PIN3
PIN5 SQUELCH CONTROL OR N/C
PIN6 S/METER OUTPUT
PIN7 N/C
PIN8 CHASSIS/GROUND
PIN9 PTT- STANDARD MIC INPUT IS MUTED
PIN10 N/C
PIN11 MIC INPUT
PIN12 SCREEN FOR PIN 11
PIN13 PTT- STANDARD MIC INPUT IS ACTIVE
SHELL EARTH
KENWOOD-TR9000-9030-9130-9300-9500-7700-7730-7750-7800-7850-7930-7950-8400
PIN1 MIC
PIN2 PTT
PIN3 DOWN
PIN6/CENTER EARTH
PIN4 UP
PIN5 NC + 8VOLT SOME MODELS
KENWOOD-TR7600-TR7625
PIN1 MIC
PIN2 PTT
PIN3 N/C
PIN4 CHASSIS/GROUND
PIN5 MIC SCREEN
KENWOOD-TS480 ( 8 Pin modular Plug )
PIN1 UP
PIN2 +8 VOLTS
PIN3 GND
PIN4 PTT
PIN5 MIC GND
PIN6 MIC
PIN7 N/C
PIN8 DOWN
Some errors in the TS-480 schematics leading to RF feedback when using other
than the stock microphone
have been noted by Kenwood, if this problem is experienced reverse the
connections to pin3 and pin5.
KENWOOD-TS-50-60-140-430-440-450-570-660-670-780-930-430-670-711
TS-811-850-870-930-940-950-440-701-790-680-690-TS-2000
TR-3200-7900-7950-50-751-851
TM-201A-201B-401A-TM401B-211-221-231-241-321-331-3530-421-431-441-521-531-541
TM-621-631-701-721-731-2530-2550-2570
TW4000-4100
PIN1 MIC
PIN2 PTT
PIN3 DOWN
PIN4 UP
PIN5 + 8VOLT Some models ( 10 Ma )
PIN6 (N/C Some models )
PIN7 MIC GROUND.
PIN8 GROUND ( STBY )
KENWOOD-TM-251-255-261-271-271E-451-455-461-641-642-708-732-733-741-742-941-942
( 8 Pin modular Plug )
TMG-707 TMD-700 TMD700A TMV-71A.TMV-71E-V7A.
KENWOOD PMR TRANCEIVER MODELS-TK-90-7108HM-7108M-7160E-7160HM-7160M-7162E-7180E-7189E
8108HM-8108M-8160E-8160M-8162E-8180E-8189-TK90 ( see KMC-30 /32 /35 above )
PIN1 UP
PIN2 +8 VOLTS (100ma max)
PIN3 GND
PIN4 PTT
PIN5 MIC GND
PIN6 MIC
PIN7 N/C. RX AUDIO (some models)
PIN8 DOWN
KENWOOD-TM-271A ( 8 Pin modular Plug )
PIN1 N/C
PIN2 +8 VOLTS (100ma max)
PIN3 GND
PIN4 PTT
PIN5 MIC GND
PIN6 MIC (600 ohm impedance)
PIN7 N/C
PIN8 KEYPAD SERIAL DATA.
YAESU- YM-21. Microphone.
YAESU- YM-34. Microphone
YAESU- YM-35. Microphone
YAESU- YM-36. Microphone
YAESU- YM-37. Microphone
YAESU- YM-38. Microphone
YAESU- YM-40. Microphone
YAESU- YM-47. Microphone.
YEASU- YM-48. Microphone.
YAESU- YM-49. Microphone.
YEASU- YM-50. Microphone.
YAESU- YM-846. Microphone.
YAESU- YD-148. Microphone.
YAESU- YD-844. Microphone.
YAESU- YE-7A. Microphone.
YAESU- MD-1B8. Microphone.
YAESU- MD-1C8. Microphone.
YAESU- MH-1A3B. Microphone.
YAESU- MH-1B8. Microphone.
YAESU- MH-10E8 MH-10F8. Microphone.
YAESU- MH-12A2B. Microphone.
YAESU- MH-14A8. Microphone.
YAESU- MH-14B8. Microphone.
YAESU- MH-14D8. Microphone.
YAESU- MH-15C8. Microphone.
YAESU- MH-15D8. Microphone.
YAESU- MH-18A2B. Microphone.
YAESU- MH-19A2B. Microphone.
YAESU- MH-25A8J. Microphone.
YAESU- MH-26. Microphone.
YAESU- MH-27. Microphone.
YAESU- MH-29A2B. Microphone.
YAESU- MH-31. Microphone.
YAESU- MH-31B8. Microphone.
YAESU- MH-31A8J. Microphone.
YAESU- MH-32A2B. Microphone.
YAESU- MH-34 / MH-34B4. Microphone.
YAESU- MH-34C2B. Microphone.
YAESU- MH-36. Microphone.
YAESU- MH-36A6J DTMF Microphone.
YAESU- MH-36B6JS Microphone.
YAESU- MH-36D8 Microphone.
YAESU- MH-36E8J DTMF Microphone.
YAESU- MH-37A4B Microphone.
YAESU- MH-42. Microphone.
YAESU- MH-42A6J Microphone.
YAESU- MH-42B6JS Microphone.
YAESU- MH-48. Microphone.
YAESU- MH-48A6J. Microphone.
YAESU- MH-57A4B.Microphone.
YAESU- MH-61A8J.Microphone.
YAESU- MH-64A8J.Microphone.
YAESU- MH-67A8J.Microphone.
YAESU- MH-68A8J.Microphone.
YAESU- MH-700D. Microphone.
YAESU- MD-11A8J. Microphone.
YAESU- MD-100. Microphone.
YAESU- MD-100A8X. Microphone.
YAESU- MD-100/100AX schematic.pdf
YAESU- MD-200. Microphone.
YAESU- MD-200A8X. Microphone.
YAESU- MD-200.Instruction Manual.pdf
YAESU MICROPHONE COMPATIBILITY LIST.
MORE YAESU MICROPHONE INFO.
YAESU ( Handheld Tranceiver's ) VX-1R VXF-1 VX-2R VX-2E VX-3R VX-5R VX-7R
VX-10 VXF-10 VX-110
VX-130 VX-131 VX-132 VX-150 VX-160 VX-180 VX-210 VX-210A VX-300 VX-400 VX-410
VX-420
(
see MH-34 / MH-34B4 / MH-57A4B ABOVE )
YAESU ( Handheld Tranceiver's ) FT-10R FT-40R FT-50R FT-60R
( see MH-37A4B ABOVE )
YAESU FT-50R FT-60R
YAESU ( Handheld Tranceiver's ) FT-51R ( see
MH-32A2B / MH-34C2 )
YAESU ( Handheld Tranceiver's ) FT-51RII
YAESU ( Handheld Tranceiver's ) FT-470 FT-411 FT-811 FT-911
( see MH-32A2B / MH-34C2 )
YAESU ( Handheld Tranceiver's ) FT-23 FT-73 FT-23RII FT-73RII
( see MH-32A2B / MH-34C2 )
CLONE INFO. pdf
YAESU ( Handheld Tranceiver's ) FT-530 ( see
MH-12A2B / MH-18A2B )
YAESU POLICE AND PUBLIC SAFETY CHANNELISED TRANCEIVERS
VX-2000 VX-2500 VX-3000 VX-3200 VX-4100 VX-4100E VX-4200 VX-4200E VXR-1000
VXR-7000
(See MH-25A8J / MD-11A8J microphones above )
PIN1 FAST
PIN2 GROUND
PIN3 PTT
PIN4 MIC
PIN5 MIC EARTH
PIN6 + 5VOLTS
PIN7 UP
PIN8 DOWN
YAESU-FT736-FT747GX-FT757GX-FT650-FT655-FT840-FT890-FT900-FT920-FT990-FT990D-FT847
FT1000-FT1000D-FT1000MP + MKV
PIN1 MIC UP
PIN2 EARTH ( + 5VOLTS FT847-FT920-FT1000MP )
PIN3 DOWN
PIN4 FAST SCAN
PIN5 EARTH
PIN6 PTT
PIN7 SCREEN/EARTH
PIN8 MIC
YAESUFTONE-FT77-FT102-FT707-FT767-FT767GX-FT980
PIN1 MIC UP
PIN2 + 5 VOLTS
PIN3 DOWN
PIN4 FAST SCAN
PIN5 CAUTION INTERCONNECTED TO PIN 2.( +5 VOLTS )
PIN6 PTT
PIN7 SCREEN/EARTH
PIN8 MIC
YAESU FT480R-FT780R ( see YM-40 above )
PIN1 green MIC UP
PIN2 yellow EARTH / COMMON U/DOWN.
PIN3 blue DOWN
PIN4 brown TONE CALL / LOCK
PIN5 orange EARTH TONE CALL / LOCK
PIN6 red PTT
PIN7 black SCREEN/EARTH
PIN8 white MIC
YAESU-FT726 (see MD1-B8 MH1-B8 Microphone above)
PIN1 UP
PIN2 COMMON UP/DOWN
PIN3 DOWN
PIN4 FAST SCAN
PIN5 EARTH
PIN6 PTT
PIN7 SCREEN/EARTH
PIN8 MIC
YAESU CPU2500R-CPU2500RK SOMMERKAMP FT227
PIN1 UP
PIN2 COMMON UP/DOWN
PIN3 DOWN
PIN4 PTT
PIN5 GROUND MIC/PTT
PIN6 MIC
YAESU
FT75-FT221R-FT223-FT101B-FT101E-FT101Z-FT101ZD-FT301D-FT902-FT902DM.
( see YD148/YD844 microphone above.)
PIN1 MIC SCREEN/EARTH ( PTT EARTH ON FT101B/101E.FT101Z/101ZD.FT902/902DM.)
PIN2 MIC
PIN3 PTT
PIN4 EARTH ON FT221R.( N/C ON FT101Z/101ZD.FT101B/101E.FT902/902DM. )
YAESU FTDX-100 FTDX-400 FTDX-401 FTDX-560 FT-200 FT-250(
See YD-148 microphone above.)
YAESU
FT201-FT125C-FTC212-FT2B-FT300C-FT224-FT225RD-FT2FB-FT223-FT220-FTC212-FT300C
FT301.
FT7-FT227R-FT227RA-FT227RX-FT250-FT401B-FT501-FT625-FL101.
( See YD-148 microphone above.)
YAESU-FT950
PIN1 MIC UP
PIN2 + 5 VOLTS
PIN3 DOWN
PIN4 FAST SCAN
PIN5 GROUND
PIN6 PTT
PIN7 SCREEN/EARTH
PIN8 MIC
YAESU FT840-FT990.
PIN1 UP
PIN2 GROUND
PIN3 DOWN
PIN4 FAST
PIN5 GROUND (INTERCONNECTED ON TRANCEIVER TO PIN 2. )
PIN6 PTT
PIN7 MIC GROUND/SCREEN
PIN8 MIC
YAESU FT2200.
PIN1 UP
PIN2 + 5 VOLTS
PIN3 DOWN
PIN4 SPEAKER.
PIN5 ACC.
PIN6 PTT
PIN7 MIC GROUND/SCREEN
PIN8 MIC
YAESU FT2500.
8 Pin round plug.
PIN1 CALL BUTTON.
PIN2 RX AUDIO.
PIN3 PTT.
PIN4 MIC.
PIN5 GROUND.
PIN6 + 5 VOLTS
PIN7 UP.
PIN8 DOWN.
YAESU FT2400H.
PIN1 CALL BUTTON.
PIN2 RX AUDIO.
PIN3 PTT.
PIN4 MIC.
PIN5 GROUND.
PIN6 + 5 VOLTS
PIN7 UP.
PIN8 DOWN.
YAESU FT5100.
PIN1 UP.
PIN2 + 5 VOLTS.
PIN3 DOWN.
PIN4 SPEAKER.
PIN5 BAND.
PIN6 PTT.
PIN7 EARTH.
PIN8 MIC.
YAESU FT211-FT212R
FT212RH-FT270-FT211RH-FT711-FT712-FT770-FT2311-FT2700-FT4700RH-FT711RH-FT770RH
(see microphones MH-15D8/ MH-15C8/ MH-14A8/ MH-14B8/
MH-14D8 above )
PIN1 UP
PIN2 +5 VOLT
PIN3 DOWN
PIN4 SPEAKER
PIN5 CPU/ TONE SW
PIN6 PTT
PIN7 GROUND
PIN8 MIC
YAESU FT230R-FT290R-FT690 FT730-FT790R
PIN1 MIC SCREEN/EARTH
PIN2 MIC
PIN3 PTT
PIN4 + 12VOLT ( + 5 VOLTS FT730-FT290R )
PIN5 SPEAKER
PIN6 UP
PIN7 DOWN
YAESU FT290RII-FT690RII-FT790RII (see MH-10E8
/MH-10F8 above )
PIN1 UP
PIN2 + 5 VOLTS
PIN3 DOWN
PIN4 SPEAKER
PIN5 N/C
PIN6 PTT
PIN7 GROUND
PIN8 MIC
YAESUFT215-FT715-FT3700-FT3800-FT3900-FT4600-FT4800-FT4900-FT5800
PIN1 UP
PIN2 + 5 VOLTS
PIN3 DOWN
PIN4 N/C
PIN5 RECALL
PIN6 RESET
PIN7 GROUND
PIN8 MIC
YAESU FT708R-FT208R HAND HELD.
( mini ) 6 PIN
PIN1 MIC ( white )
PIN2 SPEAKER ( black )
PIN3 PTT ( red )
PIN4 MIC SCREEN
PIN5 NC
PIN6 SPEAKER ( blue )
YAESU-FT897-FT857-FT817-FT900-FT-450-FT2000 ( 8 pin Modular Plug )
PIN1 FAST SCAN
PIN2 GROUND
PIN3 PTT
PIN4 MIC
PIN5 MIC GROUND
PIN6 + 5VOLT
PIN7 UP
PIN8 DOWN
YAESU-FT1500-FT1802E-FT2800-FT7800M-FT8800E-FT8900R ( 6 Pin modular
Plug )( See MH-48 microphone above )
PIN1 SW2
PIN2 SW1
PIN3 + 8VOLT
PIN4 GROUND
PIN5 MIC
PIN6 PTT (clone FT1802E )
YAESU-FTM-10R/E ( WITH BUILT IN MICROPHONE AND BLUE TOOTH.)
NEEDS MEK-M10 ADAPTER TO USE THE FOLLOWING EXTERNAL MICROPHONES
MH-68 A6J WATERPROOF MIC
MH-68 B6J WATERPROOF MIC
MEK-M10 ADAPTER CONNECTIONS.pdf
YAESU-FTDX9000D ( 3 pin XLR Plug front panel) PLUS ( 8 pin Plug rear
panel.)
( XLR PLUG FRONT PANEL.)
PIN1 MIC GRND.
PIN2 MIC HOT.
PIN3 MIC COLD.
( 8 PIN PLUG REAR PANEL.)
PIN1 UP.
PIN2 +5 VOLTS.
PIN3 DOWN.
PIN4 FAST SCAN.
PIN5 GROUND.
PIN6 PTT.
PIN7 MIC GROUND.
PIN8 MIC.
YAESU-FT100-FT90-FT8100 ( 6 pin Modular Plug )
(SEE MH-36 microphone above.)
PIN1 Multi-function switching for P,P1,P2 SW2.
PIN2 N.C. 9600bps packet data out FT90
PIN3 + 9VOLT
PIN4 EARTH
PIN5 MIC.
PIN6 SW1.PTT,UP,DOWN,Acc
Yaesu "cat"pinout connections.
(click for) -YAESU FT-100 SERIES CONNECTION DIAGRAMS.
(click for) -YAESU FT-600 SERIES CONNECTION DIAGRAMS.
(click for) -YAESU FT-707 SERIES CONNECTION DIAGRAMS.
(click for) -YAESU FT-726 SERIES CONNECTION DIAGRAMS.
(click for) -YAESU FT-736 SERIES CONNECTION DIAGRAMS.
(click for) -YAESU FT-747 SERIES CONNECTION DIAGRAMS.
(click for) -YAESU FT-757 SERIES CONNECTION DIAGRAMS.
(click for) -YAESU FT-767 SERIES CONNECTION DIAGRAMS.
(click for) -YAESU FT-817 SERIES CONNECTION DIAGRAMS.
(click for) -YAESU FT-847 SERIES CONNECTION DIAGRAMS.
(click for) -YAESU FT-897 SERIES CONNECTION DIAGRAMS.
(click for) -YAESU FT-920 SERIES CONNECTION DIAGRAMS.
(click for) -YAESU FT-980 SERIES CONNECTION DIAGRAMS.
(click for) -YAESU FT-990 SERIES CONNECTION DIAGRAMS.
(click for) -YAESU FTM-10 SERIES CONNECTION DIAGRAMS.pdf
(click for) -YAESU FT-1000MP SERIES CONNECTION DIAGRAMS.
(click for)-YAESU FTDX-9000D SERIES CONNECTION DIAGRAMS.
ICOM-IC7400-IC746-IC746PRO-IC756PRO-IC7700-IC7800
(see HM-36 below )
PIN1 MIC + DC VOLTS FOR ICOM ONLY MICROPHONE
PIN2 + 8VOLTS 10Ma TO AVOID DAMAGING THE REGULATOR DO NOT SHORT TO GROUND
PIN3 UP/DOWN
PIN4 SQUELCH
PIN5 PTT
PIN6 GROUND
PIN7 MIC SCREEN/EARTH
PIN8 AUDIO OUT
ICOM-IC703-IC706MK1-IC706MK2-IC706MK3-IC2000-IC2000H (8 Pin Modular
Plug )
PIN1 + 8VOLT
PIN2 UP/DOWN
PIN3 AUDIO OUT
PIN4 PTT
PIN5 MIC GROUND
PIN6 MIC
PIN7 GROUND/EARTH
PIN8 SQUELCH
ICOM-ICE-208-IC2100H-IC2200H-IC2725E-IC2820-(See
HM-133 below ) (8 Pin Modular Plug )
PIN1 + 8VOLT OUTPUT ( 10 ma max )
PIN2 UP/DOWN
PIN3 + 8VOLTS IN ( No connection IC2100H )
PIN4 PTT
PIN5 MIC GROUND
PIN6 MIC
PIN7 GROUND/EARTH
PIN8 DATA IN ( No connection IC2100H )
ICOM-IC-7000 (8 Pin Modular Plug )
PIN1 + 8VOLT OUTPUT ( 10 ma max )
PIN2 UP/DOWN
PIN3 + 8VOLTS SW
PIN4 PTT
PIN5 MIC GROUND
PIN6 MIC
PIN7 GROUND/EARTH
PIN8 DATA IN
ICOM-IC-2800 (8 Pin Modular Plug ) SEE HM-98 MICROPHONE BELOW.
ICOM-IC-202 IC-202S-215-22S-240-245-280-402-502
PIN1 MIC (yellow)
PIN2 PTT (red )
external speaker plug ( green)
PIN4 GROUND.(black)
ICOM HAND HELD- ICE90- IC91A/E- ICE7- ICT2A/E/H-ICT3H ICT7A/E/H-
ICT21A/E -ICT22 -ICT41E- ICT81A/E- ICV8- ICV21AT- ICV82
ICV82- ICT90- ICF3
( SEE HM-46 HM75A HM-131 BELOW )
ICOM HAND HELD- IC4A/AT/E-IC3A/AT-IC12A/AT/E

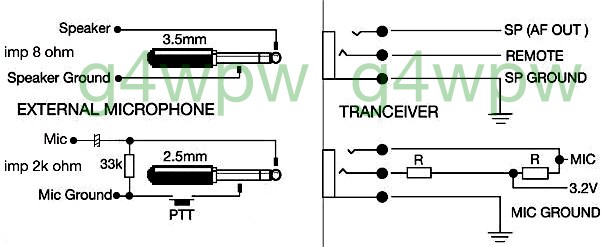

ICOM HAND HELD- ICT8A- ICT8E
ICOM-IC-211
PIN1 MIC
PIN2 PTT
PIN3 N/C
PIN4 GROUND.
ICOM
IC-120-271A-271E-275-290-228-229-229H-22U-25-25E-27-27E-28-29E-255-260-290-2400-2500-3200-3210-3220
IC-37A-38A-375-45-47-77-78-451-471A-475-48-490-505-551-560-575-707-718-720-725-726-728-729-730-735-736-737/A-738
IC-740-745-746-751/A-756/PRO-761-765-775-781-820H-821-821H-900-901-901H-910X-970-1200-1201-1271-1275
( For IC-27 / 27E see IC-HM24 below )
ICOM-IC24G-IC251E-IC451E. (See SM-5 hand mic &
SM-5 desc mic.)
PIN1 MIC ( white. connection at + 9VOLTS
above earth )
PIN2 NC
PIN3 NC
PIN4 NC
PIN5 PTT ( red )
PIN6 PTT ( black )
PIN7 MIC SCREEN
PIN8 NC
ICOM- SM2 MIC CONNECTIONS.
ICOM-
SM5 MIC CONNECTIONS.
ICOM- SM6 MIC CONNECTIONS.
ICOM- SM8 MIC CONNECTIONS.
ICOM- SM10 MIC CONNECTIONS.
ICOM- SM20 MIC CONNECTIONS.
MORE- SM20 MIC INFORMATION.
ICOM- IC-HM5 MIC CONNECTIONS.
ICOM- IC-HM7 HAND MIC CONNECTIONS.
ICOM- IC-HM10 MIC CONNECTIONS.
ICOM- IC-HM11 MIC CONNECTIONS.
ICOM- IC-HM12 MIC CONNECTIONS.
ICOM- HM12 MIC CONNECTIONS.
MORE- IC-HM12 MIC INFORMATION.
ICOM- IC-HM14 MIC CONNECTIONS.
ICOM- IC-HM15 MIC CONNECTIONS.
ICOM- HM-22 MIC CONNECTIONS.
ICOM- HM-23 MIC CONNECTIONS.
ICOM- HM-24 MIC CONNECTIONS.
ICOM- HM-36 MIC CONNECTIONS.
ICOM- HM-46 MIC CONNECTIONS.
ICOM- HM-54 MIC CONNECTIONS.
ICOM- HM-56/56A MIC CONNECTIONS.
ICOM- HM-75A MIC CONNECTIONS.
ICOM- HM77-HM78-HM79-HM95-HM97 MIC CONNECTIONS.
ICOM- HM-90 WIRELESS MIC CONNECTIONS.
ICOM- HM-98 MIC CONNECTIONS.
ICOM- HM-103 MIC CONNECTIONS.
ICOM- HM-113-113V MIC CONNECTIONS.
ICOM- HM-118-118TN MIC CONNECTIONS.
ICOM- HM-131 MIC CONNECTIONS.
ICOM- HM-133 MIC CONNECTIONS.
ICOM- HM-151 MIC CONNECTIONS (IC-7000 ).
ICOM- HM-154 MIC CONNECTIONS.
ICOM- HM-128L-HM-153L-HM-158L-HM-166L EARPHONE MIC CONNECTIONS.
IC-821H- ACC SOCKET CONNECTIONS.
click for MORE ICOM INFORMATION.
click for ICOM MICROPHONE COMPATIBILITY LIST.
click for ICOM CONNECTING CABLE REFERENCE LIST.
CAUTION !
IF YOU WISH TO USE THE FOLLOWING ICOM MICROPHONE'S ( model's below ) ON
TRANCEIVERS OTHER THAN ICOM, CHECK THIS link
INFORMATION ALSO
MICROPHONE MODEL'S
IC-SM8 IC-SM6 IC-HM7 IC-HM11 IC-HM12 IC-HM14 IC-HM15 IC-HM22 IC-HM24 IC-HM36
Click here to
Download ALINCO Instruction/Service manuals FREE.
ALINCO
DX70-DX70T-DX77-DR135-DR435-DR150E-DR150TE-DR430-DR510-DR570-DR590-DR592T-DR599T-DR600T-DR610
ALR22H-ALD24T-ALR22T-ALR72T-DR110-DR112-DR-M03-DR-MO6
PIN1 MIC PIN2 PTT PIN3 DOWN PIN4 UP PIN5 + 5VOLT ( Max current 25Ma ) PIN6 AUDIO OUT ( remote DR150TE-DR590-DR592-DR599-DR600 ) SEE ABOVE DIAGRAM REFERENCE. PIN7 MIC SCREEN/EARTH PIN8 EARTH
ALINCO DR140-DR605 ( Modular Plug ) PIN1 UP. PIN2 GROUND. PIN3 MIC. PIN4 MIC GROUND. PIN5 PTT. PIN6 N/C. PIN7 DOWN. PIN8 + 5 VOLTS. P
ALINCO 22T/E.24E/T PIN1 MIC PIN2 PTT PIN3 DOWN PIN4 UP PIN5 + 8VOLT PIN6 N/C PIN7 MIC EARTH PIN8 GROUND
ALINCO EMS-14. - ADONIS AM-508E. -WATSON AM308 MICROPHONE COLOR CODING.
YELLOW MIC
SCREEN EARTH (ground)
GREY PTT ( + VOLTAGE FEED ON ADONIS D80 )
BLUE PTT EARTH ON WATSON 308.
PURPLE PTT EARTH (ground)
GREEN MIC UP
ORANGE COMMON (connect to ground)
WHITE MIC DOWN ( + VOLTS WATSON AM-308 )
BLACK MIC DOWN ON WATSON AM-308
RED + VOLTS FEED( PTT ON ADONIS D80 AND WATSON AM-308 )
ALINCO DMR610 DR-135 DR-435.
PIN 1 MIC
PIN 2 PTT
PIN 3 DOWN
PIN 4 UP
PIN 5 +5 VOLTS
PIN 6 REMOTE CONTROL
PIN 7 SCREEN EARTH (ground)
PIN 8 GND
ALINCO. DJ-S11 DJ-41 DJ-180 DJ-190 DJ-191 DJ-491G DJ-G1 DJ-G5
ALINCO. DJ-560 DJ-580
ALINCO HANDHELD. DJ-V17 DJ-V17E DJ-V17T DJ-V17TFH DJ-47E DJ-47T DJ-47T1 DJ-47T2 click for schematic
EMS-5A MIC CONNECTIONS. EMS-14 MIC CONNECTIONS. EMS-42.MIC CONNECTIONS. EMS-45.MIC CONNECTIONS. EMS-46.MIC CONNECTIONS. EMS-47.MIC CONNECTIONS. EMS-51.MIC CONNECTIONS. EMS-52.MIC CONNECTIONS. EMS-53.MIC CONNECTIONS. EMS-52 / 53.MIC SCHEMATICS. EMS-54.MIC CONNECTIONS. EMS-55.MIC CONNECTIONS. EMS-54 / 55.MIC SCHEMATICS. EMS-56.MIC CONNECTIONS. EMS-56.MIC SCHEMATIC. EMS-57.MIC CONNECTIONS. EMS-57.MIC SCHEMATIC.
ADONIS- AM-DX1 MICROPHONE INSTRUCTIONS AND SCHEMATIC.pdf ADONIS- AM-308 MICROPHONE INSTRUCTIONS AND SCHEMATIC.pdf ADONIS- AM-508e MICROPHONE INSTRUCTIONS AND SCHEMATIC.pdf ADONIS- AM-708 MICROPHONE INSTRUCTIONS AND SCHEMATIC.pdf ADONIS- AM-7500e MICROPHONE INSTRUCTIONS AND SCHEMATIC.pdf ADONIS- AM-308 / AM-508 / AM-608 / AM-708 / AM-7500E MICROPHONE PHOTO'S ADONIS MICROPHONE INTERCONNECTING CABLE INFO. INFO TO CONNECT ADONIS AM-DX1 AM-308 AM-508 AM-708 AM-7500e TO YAESU FT-847 FT-920 FT-1000MP.
ADONIS MICROPHONE CONVERTION LEADS FOR AM-708 ABOVE. ADONIS LEAD NUMBER D-88K AS-327 ( Connections for Kenwood configuration)
SILVER PLUG END (tranceiver). ORANGE PLUG END ( connected to microphone). PIN 1 YELLOW. connected to PIN 2.YELLOW.(mic) PIN 2 RED. .. PIN 3.RED.(ptt) PIN 3 WHITE. .. PIN 6.WHITE.(down) PIN 4 GREEN. .. PIN 5.GREEN.(up) PIN 5 GREY. .. PIN 8.GREY.(+volts DC feed) PIN 6 N/C. .. PIN 4.PURPLE.(ptt ground) PIN 7 SCREEN. .. PIN 1.SCREEN.(mic ground) PIN 8 ORANGE+PURPLE. .. PIN 7.ORANGE.(up/down common ground)
ADONIS LEAD NUMBER D-80K AS-340 This is sold as a spare lead with only orange (mic end) plug fitted.
ORANGE PLUG END (connected to microphone). PIN 2.YELLOW.(mic) PIN 3.RED.(ptt) PIN 6.WHITE.(down) PIN 5.GREEN.(up) PIN 8.GREY.(+volts DC feed) PIN 4.PURPLE.(ptt ground) PIN 1.SCREEN.(mic ground) PIN 7.ORANGE.(up/down common ground)
COLOURS AND CONNECTIONS ON THE ORANGE (mic) PLUG ENDS OF LEADS ARE IDENTICAL.
STANDARD ADONIS MICROPHONE COLOR CODING
YELLOW. (mic)
RED. (ptt)
WHITE. (down)
GREEN. (up)
GREY. (+volts DC feed)
PURPLE. (ptt ground)
SCREEN. (mic ground)
ORANGE. (up/down common ground)
ADI. AR-146 AR-446 8 PIN ROUND PLUG.
PIN 1 MIC.
PIN 2 PTT.
PIN 3 DOWN.
PIN 4 UP.
PIN 5 + 8VOLTS ( max 150 Ma ).
PIN 6 RX AUDIO OUT.
PIN 7 MIC SCREEN.
PIN 8 GROUND.
ASTATIC 531 schematic. ASTATIC D104 schematic. ASTATIC MICROPHONE WIRING REFERENCE pdf
ATLAS TRANCEIVERS MODELS.-TX110-180-210-215-350XL. ATLAS-VX5 VOX UNIT.
PCS-5000-6000-7000
PIN 1 MIC.
PIN 2 MIC GROUND.
PIN 3 -
PIN 4 DOWN.
PIN 5 UP.
PIN 6 COMMON GROUND.
PIN 7 PTT.
PIN 8 +13.8 VOLTS
KMW-1 KWM-2 KWS-1 KWM-2A KWM-380 KWM-390 (S-LINE) 32S-1 32V-2 32S-3 .COLLINS SM1/SM3 MICROPHONE INFO.
DRAKE. TR-5 TR-7 TR-7A 4 PIN PLUG.
PIN 1 MIC.
PIN 2 PTT.
PIN 3/4 EARTH/GROUND.
DRAKE. TR-3 TR-4 TR-4B TR-4C T-4XC T-4XB ( S230 Mic Plug.)
FDK. MULTI-11 MULTI-UII MULTI-II MULTI-700E MULTI-700EX MULTI-2700 4 PIN ROUND PLUG.
PIN 1/4 GROUND / MIC SREEN
PIN 2 PTT.
PIN 3 MIC.
FDK. MULTI-750A MULTI-750E 6 PIN ROUND PLUG.
PIN 1 MIC
PIN 2 PTT.
PIN 3 UP.
PIN 4 + 5V
PIN 5 GROUND.
PIN 6 DOWN.
HT-46
HALLICRAFTER. HT-32 HT-36 HT-44 SR-42 SR-42A SR-46 SR-150 SR-160 SR-400 SR-400A SR-500 SR-540 SR-2000
HALLICRAFTER. HT-40 HT-37
Heathkit- SB-100 / SB-104 mic Connection Heathkit- HW-12 / HW-22 mic Connection Heathkit- HW-17 mic Connection
HM-10 DUAL, GM-4,GM-5,GMV. HANDIMIC-HM-4, HM-5, HM-iC, HM-PRO. CLASSIC. 4 PIN XLR PLUG.
PIN 1 GROUND/SHIELD.
PIN 2 MIC.
PIN 3/4 PTT.
PRO-20, PRO-30, PR0-40, CLASSIC PRO, HERITAGE. 3 PIN XLR PLUG.
PIN 1 SHIELD.
PIN 2 + MIC.
PIN 3 - MIC.( connected to pin 1 )
PIN 1 SHIELD.
PIN 2 + MIC OUTPUT
PIN 3 - MIC GROUND
THE HEIL CONNECTION SYSTEM. MORE INFORMATION FROM THE HEIL WEBSITE.
JST-100 JST-100D JST-100S JST-110 JST-135 JST-145 JST-245.
PIN1 MIC UP
PIN2 NC
PIN3 MIC DOWN
PIN4 + 9 VOLTS
PIN5 PTT EARTH
PIN6 PTT
PIN7 MIC EARTH
PIN8 MIC
KDK. FM-2016 FM-2025 4 PIN ROUND PLUG.
PIN 1 PTT GROUND.
PIN 2 PTT.
PIN 3 MIC SCREEN.
PIN 4 MIC.
KDK. FM-2030 FM-2033 6 PIN ROUND PLUG.
PIN 1 UP/DOWN GROUND.
PIN 2 UP.
PIN 3 DOWN.
PIN 4 PTT.
PIN 5 MIC.
PIN 6 MIC SREEN/GROUND.
KDK DM-TT1 MICROPHONE KDK TM-2 MICROPHONE KDK DM-100 MICROPHONE
KW TRANSMITTERS /TRANCEIVERS KW-1 KW-2000 KW-2000A KW-2000B KW-VESPA KW-VICEROY
MFJ-8621. DATA CONNECTIONS. Must be configured for 1200 baud operation.
Note:This radio has un-squelched output.use "software DCD"
PIN1 AFSK In (yellow)
PIN2 GROUND/EARTH (black)
PIN3 PTT (red)
PIN4 AFSK Out (green)
MFJ-297 MF-J299 MICROPHONES.
PIN1 MIC GROUND
PIN2 MIC
PIN3 PTT
PIN4 PTT GROUND
PIN5 UP
PIN6 DOWN
PIN7 COMMON UP/DOWN
PIN8 DC VOLTS.
AMR-1000/S.
PIN1 MIC GROUND 0VOLTS
PIN2 PHONES
PIN3 CRADLE
PIN4 PTT
PIN5 MIC
PIN6 +12 VOLTS
PIN7 DOWN
PIN8 UP
NEC. CQ110E 4 PIN ROUND PLUG.
PIN 1+4 ( INTERCONNECTED ) GROUND / MIC SREEN
PIN 2 PTT.
PIN 3 MIC.
RADIO SHACK. ( Modular Connector)
Models HTX-212.HTX242. PIN2 GROUND/EARTH (black) green EXTERNAL SPEAKER PIN5 MIC (yellow) PIN6 PTT (red)
RADIO SHACK- HTX-100 MICROPHONE INFO.
RADIO SHACK- HTX-252 MICROPHONE INFO.(pdf )
SG-2020.
PIN 1 MIC. PIN 2 PTT. PIN 3 OPT 1. PIN 4 OPT 2. PIN 5 N/C. PIN 6 RX AUDIO OUT. PIN 7 MIC GROUND. PIN 8 GROUND.
TS-280FM TS-480FM.
SOMERKAMP FT-307CBM (see YAESU FT-107 ) FT-277ZD ( see YAESU FT-101ZD ) FT-767DX ( see YAESU FT-707 ) FT-7B ( see YAESU FT-7 )
C58-C78-C88-C1100-C4100-C5800-C7800-C8800-C8900
PIN 1 MIC. PIN 2 PTT. PIN 3 SPEAKER. PIN 4 COMMON (NOTE:+8VOLTS ON THIS CONNECTION.) PIN 5 DOWN. PIN 6 UP. PIN 7 GROUND. Note.0.001uF capacitor is connected between pin 1 and pin 7
STANDARD. C5000-C5200-C6000-C6000S PIN 1 MIC. PIN 2 PTT. PIN 3 SPEAKER. PIN 4 COMMON. PIN 5 UP. PIN 6 DOWN. PIN 7 CALL. PIN 8 GROUND.
STANDARD. C5900 ( 8 pin modular type plug.)
PIN 1 PIN 2 PIN 3 PIN 4 PTT. PIN 5 GROUND. PIN 6 MIC. PIN 7 PIN 8
SWAN.100MX- SS-200A-250C-350-400-500-500C-700CX-750.
Shure- 444 schematic. Shure- 522 schematic. Shure- 527B schematic. Shure- 550L schematic. MORE SHURE MICROPHONE INFO.
ORION / ARGONAUT / JUPITER.info and Schematic. TEN-TEC ORION - ARGONAUT - JUPITER - OMNI VI - PARAGON - DELTA II - CORSAIR - SCOUT-555 4 PIN PLUG.
PIN1 MIC + PIN2 MIC - PIN3 PTT PIN4 +9 VOLTS. SHELL/CHASSIS=GROUND
TEN-TEC ORION II / OMNI VII.
8 PIN PLUG.
PIN1 N/C
PIN2 +10 VOLTS
PIN3 N/C
PIN4 N/C
PIN5 GROUND
PIN6 PTT
PIN7 MIC EARTH
PIN8 MIC
OMNI-VII microphone info and Schematic.
ORION-II microphone info and Schematic.
TEN-TEC 705 MICROPHONE pdf
TURNER- EXPANDER 500.schematic.
TURNER- EXPANDER 500 AMPLIFIER .schematic.
TURNER- M+2U - JM+2U.schematic.
TURNER- +3 AMPLIFIER.schematic.pdf
TURNER- SUPER SIDEKICK and +3 schematic.
TURNER- ROAD KING 56.schematic.
TURNER- RK60 / RK60J / PLUS+2 / M+3.schematic.
VIKING-II.
VALIANT - RANGER.
PIN 1 MIC.
PIN 2 PTT.
PLUG CASE EARTH.
( The above information is consistently cross checked and updated )
last - update
