Multi-Pole Coaxial Switches
Return to  Coaxial Switches Main Page
Contact us at:
Phone: (520) 749-8471
FAX: (520) 760-7780
Cell: (520) 232-4479
Multi-Pole Coaxial Switches


Dow-Key 435-5308 SP3T DC-18 GHz Coaxial Switch
Normally Open, operates on 28 VDC.
SPECIFICATIONS

DC-2 GHz
2-8 GHz
8-12.4 GHz
12.4-18 GHz
VSWR
1.2:1 Max
1.3:1 Max
1.4:1 Max
1.5:1 Max
Insertion Loss (db)
0.02 Max
0.35 Max
0.45 Max
0.6 Max
Isolation (dB)
60 Min
60 Min
60 Min
60 Min

At 10 MHz, typical values are:
Isolation: 100 dB;  VSWR: 1.05:1;  Insertion Loss: 0.05dB


2 available
$5.00 Shipping

$55.00    Warranty
stk#12020602
Return to Top



Dynatech M3-413H30FPT SP3T RF Coaxial Switch


DC - 18 GHz.  Operates on 28 VDC.  Normally open contacts with indicating circuitry.  High power handling, with 50 Ohm termination on each unused position.







1 available
$5.00 Shipping

$125.00    Warranty
stk#2532408782
Return to Top



Dynatech M5-413K30L DC-18 GHz SP5T Coaxial Switch
Operates on 24 - 30 VDC. Normally open, TTL (High). SMA(f) RF connectors, solder terminals for power connections. Switching time is <15 msec. Impedance is 50 Ohms. Removed from working test system.


SPECIFICATIONS
Operating Frequency
DC-3 GHz
3-8 GHz
8-12.4 GHz
12.4-18 GHz
VSWR
1.2:1
1.3:1
1.4:1
1.5:1
Insertion Loss (max)
0.2 dB
0.3 dB
0.4 dB
0.5 dB
Isolation (min)
80 dB
70 dB
60 dB
60 dB




1 available
$5.00 Shipping

$85.00    Warranty
stk#11280612
Return to Top


Dynatech/U-Z Inc. M3-423G201L SP3T RF Coaxial Switch
Model M3-423G201L
SP3T, DC to 12.4 GHz, +logic drive. Includes Canon connector. Operates on 28 VDC, actuating current is 200 mA @ 28 VDC and 72F. SMA(f) connectors. Normally open with indicator circuitry and suppression diodes. Switching time is <15 msec. Impedance is 50 Ohms. Removed from working test system.

SPECIFICATIONS
Operating Frequency
DC-3 GHz
3-8 GHz
8-12.4 GHz
VSWR
1.2:1
1.3:1
1.4:1
Insertion Loss (max)
0.2 dB
0.3 dB
0.4 dB
Isolation (min)
80 dB
70 dB
60 dB

1 available
$5.00 Shipping

$55.00    Warranty
stk#12040601
Return to Top


Dynatech N8-416J2-1L SP8T DC-12.4 GHz SMA Coaxial Switch
Operates on 12 - 15 VDC, TTL (High). SMA(f) RF connectors, solder terminals for power connections. Switching time is <15 msec. Impedance is 50 Ohms. Includes mounting bracket option. Removed from working test system.

SPECIFICATIONS
Operating Frequency
DC-3 GHz
3-8 GHz
8-12.4 GHz
VSWR
1.2:1
1.3:1
1.4:1
Insertion Loss (max)
0.2 dB
0.3 dB
0.4 dB
Isolation (min)
80 dB
70 dB
60 dB

1 available
$5.00 Shipping

$150.00 ea.    Warranty
stk#12040602
Return to Top



Dynatech N8-423G201L SP8T SMA Coaxial Switch
DC - 12.4 GHz, Operates on 24-30 VDC. Circular Quick disconnect power connector, SMA(f) connectors. Normally open contacts with indicator circuitry and suppression diodes. Actuator is TTL (high). Includes mounting bracket option.

SPECIFICATIONS
Operating Frequency
DC-3 GHz
3-8 GHz
8-12.4 GHz
VSWR
1.2:1
1.3:1
1.4:1
Insertion Loss (max)
0.2 dB
0.3 dB
0.4 dB
Isolation (min)
80 dB
70 dB
60 dB

1 available
$5.00 Shipping
$150.00    Warranty
stk#12040603
Return to Top



Dynatech 06-113J28FT SP6T Type N Coaxial Switch
DC - 12.4 GHz, Operates on 28 VDC (Common +). Type N(f) connectors, 50 Ohm impedance. Failsafe, Normally open contacts with suppression diodes, 50 Ohm terminations. Switching time <15 msec. Includes Flange mounting option. Removed from working system. Fully tested.

SPECIFICATIONS
Operating Frequency
DC-3 GHz
3-8 GHz
8-12.4 GHz
VSWR
1.2:1
1.35:1
1.5:1
Insertion Loss (max)
0.2 dB
0.35 dB
0.5 dB
Isolation (min)
80 dB
70 dB
60 dB

2 available
$5.00 Shipping

$200.00 ea.    Warranty
stk#12040604
stk#3830678800
Return to Top



Dynatech Q6-433G38 SP6T DC-18 GHz Coaxial Switch
Operates on 24-30 VDC. Has Quick Disconnect type power connector, SMA RF connectors. Includes mounting flange option.



SPECIFICATIONS
Operating Frequency
DC-3 GHz
3-8 GHz
8-12.4 GHz
12.4-18 GHz
VSWR
1.2:1
1.3:1
1.4:1
1.5:1
Insertion Loss (max)
0.2 dB
0.3 dB
0.4 dB
0.5 dB
Isolation (min)
80 dB
70 dB
60 dB
60 dB

1 available
$5.00 Shipping

$125.00 ea.    Warranty
stk#12050601
Return to Top

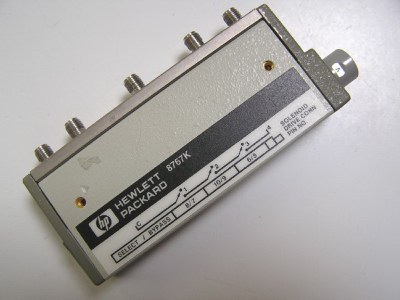

 HP 8767K SP4T DC to 26.5 GHz 3.5 mm(f) Coaxial Switch

the HP 8767K is a modified version of the coaxial edgeline design ( dc to 26.5 GHz) for applications requiring single-pole, 4-throw coaxial switches.

This compact switch offers the same reliability, repeatability (typically 0.01 dB), and long life as the HP 8494/5/6/7K Series step attenuators from which it was derived.  It uses the same Viking connector as the step attenuators, for dc control.

Specifications:
Solenoid Voltage:
24 VDC
SWR:
<1.3 to 8 GHz
<1.5 to 12.4 GHz
<1.6 to 18 GHz
<1.8 to 26.5 GHz
Insertion Loss:
Ports 1,2,3: <0.2 dB + 0.05 dB/GHz
Port 4: 0.25 dB + 0.095 dB/GHz
Switching Speed:
< 20 msec
Connectors:
3.5 mm (f)

1 available
$3.00 Shipping

$450.00    Warranty
stk#11280601
Return to Top



HP 8769KHP 8769K DC to 18 GHz SP6T Coaxial Switch
The 8769K switch is a modified version of the HP 8497K Step Attenuator, for applications requiring a single pole, 6 throw coaxial switch. The switch ports are unterminated. This switch offers exceptional repeatability of 0.03 dB over 5 million switching cycles. It has Options 002 (SMA Connectors), and 008 (8-inch Ribbon Cable w/DIP Connector). This item is unused.

Detailed specifications can be found at:
http://cp.literature.agilent.com/litweb/pdf/5959-7831.pdf


1 available
$7.00 Shipping.
$500.00 ea.    Warranty
stk#12170601



Narda SEM143DTLoral 040-D23-A1C-3A0 SP4T DC-12.4 GHz, 24 VDC, SMA Coaxial Switch
The Loral 040-D23-A1C-3A0 is a SP4T Normally Open DC-12.4 GHz Coaxial Switch. It features Indicator circuitry, Suppression Diodes, SMA connectors. Actuating Voltage is 24 VDC (Common Plus). It has standard mounting holes.
Specifications
Frequency
Range
DC-12.4 GHz
Insertion
Loss
dB (MAX)
VSWR
(MAX)
Isolation
dB (MIN)
DC-3 0.2 1.2:1 80
3-8 0.3 1.3:1 70
8-12.4 0.4 1.4:1 60

1 available
$5.00 Shipping.
$55.00    Warranty
stk#12200601
Return to Top

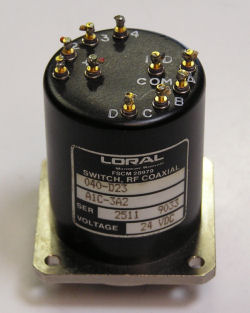

Narda SEM143DTLoral 040-D23-A1C-3A2 SP4T DC-12.4 GHz, 24 VDC, SMA Coaxial Switch
The Loral 040-D23-A1C-3A2 is a SP4T Normally Open DC-12.4 GHz Coaxial Switch. It features Indicator circuitry, Suppression Diodes, SMA connectors. Actuating Voltage is 24 VDC (Common Plus). It has standard mounting holes.
Specifications
Frequency
Range
DC-12.4 GHz
Insertion
Loss
dB (MAX)
VSWR
(MAX)
Isolation
dB (MIN)
DC-3 0.2 1.2:1 80
3-8 0.3 1.3:1 70
8-12.4 0.4 1.4:1 60



3 available
$5.00 Shipping.

$55.00    Warranty
stk#12200602
Return to Top



Loral 042-B347-A2C-7C2 SP4T DC-3 GHz Latching Coaxial Switch
Loral Model 042-B347-A2C-7C2
These RF switches were designed to be used at cellular telephone tower sites. It uses a standard DB-9 Control Connector (same as computer serial port).

Specifications
Frequency Range:  DC to 3 GHz
Input Power:  100 W @ 3 GHz
Insertion Loss:  0.2 dB
VSWR:  1.2:1
Switch Time:  15 mS
Contact configuration:  Make Before Break
Connectors:  SMA(f) and DB-9
DB-9 Connector Pin Out:
  Pin 1 = +24VDC @ 150 mA
  Pin 2 = Negative (Ground)
  Pin 3 = Logic 1
  Pin 4 = Logic 2
  Pin 5 = Logic 3
  Pin 6 = Logic 4
  Pin 7, 8, 9 = No Connection
Logic: Off = 0-0.8V   On = 2.4-5.5V

17 available
$5.00 Shipping.$45.00 ea.    Warranty
stk#3837851740



Loral 062-B237-A1D-4B1 SP6T Latching, DC-18 GHz, Coaxial Switch w/Indicators
Latching, with Self-De-energizing Circuitry, with suppression diodes. SMA(f) RF connectors, Solder terminals for control. Mounting bracket included.

SPECIFICATIONS
Actuating Current (mA) @ 28 VDC & 25°F:  600
Frequency
Range
DC - 18 GHz
Insertion Loss
dB (Max)
VSWR
(Max)
Isolation
dB (Min)
DC - 3 GHz
0.2
1.2:1
80
3 - 8 GHz
0.3
1.3:1
70
8 - 12.4 GHz
0.4
1.4:1
60
12.4 - 18 GHz
0.5
1.5:1
60
1 Available
$5.00 Shipping

$65.00 ea.    Warranty
stk#12060602
Return to Top



Relcomm RMM-SR001 SP4T DC-3 GHz Coaxial Switch w/TTL Driver
Uses standard DE9P connector for control. RF connectors are SMA(f). Operating voltage is 20-28 VDC, current is 135 mA @ 24 VDC. Nominal impedance is 50 Ohms. Insertion Loss is 0.2 dB Max.

VSWR is 1.2:1 Max. Switching time <15 ms. TTL Logic: On State: 2.4 - 5 VDC, OFF State: 0 - 0.8 VDC.

12 available
$5.00 Shipping

$45.00 ea.    Warranty
stk#12060603
Return to Top


RLC SR-4C-H-TL SP4T DC-18 GHz, 12 VDC, Failsafe TTL Switch
The model SR-4C-H-TL is a failsafe, Single Pole 4 Throw Switch with TTL logic driver.  This switch has RF Power ratings of:
400 W @ 100 MHz, 200 W @ 600 MHz, 160 W @ 1 GHz, and 40 W @ 18 GHz.
Impedance is 50 Ohms, and the operating voltage is 12 VDC @ 400 mA nominal.

SPECIFICATIONS
Insertion Loss (Max dB)
dc-4.0 GHz
4.0 - 12.4 GHz
12.4-18 GHz

0.20
0.30
0.50
VSWR (Max)
dc-4.0 GHz
4.0 - 12.4 GHz
12.4-18 GHz

1.25
1.40
1.50
Isolation (dB Min)
60
Connectors, RF
SMA
Connectors, Power
Feed Through solderlugs

1 available
$5.00 Shipping

$75.00 ea.Warranty
stk#12060604
Return to Top


Teledyne CS38S13C SP3T DC-18 GHz Coaxial Switch
Operates on 24-30 VDC; Actuator current is 140 mA. Each position has an individual actuator mechanism allowing random position selection. All paths are open when the switch is de-energized. Has indicator contacts. With the Normally open actuator, all paths are open when the switch is de-energized.


Switching time is <15 ms. The characteristic impedance is 50 Ohms




SPECIFICATIONS
RF Contacts:
Break before make

Actuator
Voltage (VDC) @ 20° C
28
Current (mA)
140
Frequency:
DC - 6 GHz
6-12 GHz
12-18 GHz
VSWR:
1.25:1
1.40:1
1.50:1
Insertion Loss (min)
0.20 dB
0.40 dB
0.50 dB
Isolation (max)
70 dB
60 dB
60 dB
Switching Time:
<15 msec
Connectors:
SMA(f)

Click to see chart on RF Power Handling

1 available
$5.00 Shipping

$45.00 ea.    Warranty
stk#12120601
Return to Top



Teledyne CR-38S14O SP4T DC-22 GHz Coaxial Switch


The CR-38S14O is a DC to 22 GHz electromechanical coaxial switch designed to switch a microwave signal from a common input to any of 4 outputs. The characteristic impedance is 50 Ohms. Each position has an individual actuator mechanism allowing random position selection. With the Normally open actuator, all paths are open when the switch is de-energized.







SPECIFICATIONS
RF Contacts:
Break before make


Actuator
Voltage (VDC) @ 20° C
28
Current (mA)
140

Frequency:
DC - 6 GHz
6-12 GHz
12-18 GHz
18-22 GHz
VSWR:
1.25:1
1.40:1
1.50:1
1.80:1
Insertion Loss (min)
0.20 dB
0.40 dB
0.50 dB
0.60 dB
Isolation (max)
70 dB
60 dB
60 dB
50 dB
Switching Time:
<15 msec
Connectors:
SMA(f)
Click to see chart on RF Power Handling



1 available
$5.00 Shipping

$150.00 ea.    Warranty
stk#12120602
Return to Top


Teledyne CS38S14 SP4T DC-18 GHz Coaxial Switch


The CS-38S14 is a DC to 18 GHz electromechanical coaxial switch designed to switch a microwave signal from a common input to any of 4 outputs.  The characteristic impedance is 50 Ohms.  Each position has an individual actuator mechanism allowing random position selection.  With the Normally open actuator, all paths are open when the switch is de-energized.










SPECIFICATIONS
RF Contacts:
Break before make



Actuator
Voltage (VDC) @ 20° C
28
Current (mA)
140


Frequency:
DC - 6 GHz
6-12 GHz
12-18 GHz
VSWR:
1.25:1
1.40:1
1.50:1
Insertion Loss (min)
0.20 dB
0.40 dB
0.50 dB
Isolation (max)
70 dB
60 dB
60 dB
Switching Time:
<15 msec
Connectors:
SMA(f)

Click to see chart on RF Power Handling

1 available
$5.00 Shipping

$90.00 ea.    Warranty
stk#12120603
Return to Top



Teledyne CS38S16 SP6T DC-18 GHz Coaxial Switch


The CS-38S16 is a DC to 18 GHz electromechanical coaxial switch designed to switch a microwave signal from a common input to any of 6 outputs. The characteristic impedance is 50 Ohms. Each position has an individual actuator mechanism allowing random position selection. With the Normally open actuator, all paths are open when the switch is de-energized.










SPECIFICATIONS
RF Contacts:
Break before make


Actuator
Voltage (VDC) @ 20° C
28
Current (mA)
140

Frequency:
DC - 6 GHz
6-12 GHz
12-18 GHz
VSWR:
1.25:1
1.40:1
1.50:1
Insertion Loss (min)
0.20 dB
0.40 dB
0.50 dB
Isolation (max)
70 dB
60 dB
60 dB
Switching Time:
<15 msec
Connectors:
SMA(f)

Click to see chart on RF Power Handling

1 available
$5.00 Shipping

$135.00 ea.    Warranty
stk#12120604
Return to Top



Transco 146C70600 SP6T, DC-18 GHz, Type MO, 28 VDC, Coaxial Switch


This Type MO SP6T switch utilizes selective linear actuators for each position. RF geometry is optimized for SMA connectors and operates over a 0-18 GHz frequency band. Individual solenoids mean faster switching time...no waiting for the switch to sequence through a number of positions before stopping at the selected position. Separate "selective" solenoids provide positive action and a low actuator current requirment. Actuating voltage is 28 VDC.




Switch Without PWB                                           Switch With PWB/Diodes

SPECIFICATIONS


DC-2 GHz
2-8 GHz
8-12.4 GHz
12.4-18 GHz
VSWR
1.2:1 Max
1.3:1 Max
1.4:1 Max
1.5:1 Max
Insertion Loss (db)
0.02 Max
0.35 Max
0.45 Max
0.6 Max
Isolation (dB)
60 Min
60 Min
60 Min
60 Min
At 10 MHz, typical values are:
Isolation: 100 dB; VSWR: 1.05:1; Insertion Loss: 0.05dB

5 available - 1 has pwb with diodes,
soldered to control terminals
$5.00 Shipping

$150.00 ea.    Warranty

stk#12120605 Switch Without PWB
5 Available

stk#12120606 Switch With PWB/Diodes
1 Available

Return to Top
